We provide customers with dry powder fire extinguishers,water fire extinguishers,trolley fire extinguisher, auto fire extinguisher, fire extinguisher cylinder,fire extinguisher accessories! we have competitive prices. many years of dry powder fire extinguishers and water fire extinguishers experience, as well as our professional knowledge, to help you reduce your costs, while providing you with high value services.
If you want to find the suitable manufacturer for dry powder fire extinguishers and water fire extinguishers, in China, just come to the right place! we’re the best reputable supplier for dry powder fire extinguishers in China!
Please get in touch with us for the favourable prices. we’re in a position to supply dry powder fire extinguishers and water fire extinguishers at the most competitive prices.
We got good experience in manufacturing dry powder fire extinguishers and water fire extinguishers. our profound expertise can help reduce cost and offer high value-added services.
When you have the intent to work with us, just achieve success with one of the best fire extinguisher suppliers in china!

We’re capable of supply all kinds of water fire extinguishers, dry powder fire extinguishers, trolley fire extinguishers,portable fire extinguisher,fire extinguisher cylinder,fire extinguisher accessories,which covers all your scope.
For any high quality fire extinguishers you need,just come here to select!
We’re a leading fire extinguishers supplier in China and make the possible effort to supply most suitable dry powder fire extinguishers,water fire extinguishers,at most effective cost at right time.Our priority focus on CUSTOMERS’ SATISFACTION.
Due to long-term production experience and RD technology,we have developed the latest fire extinguisher. We also provider fire extinguishers solutions for individual users,small businesses and distributors. For dry powder fire extinguishers, water fire extinguishers,trolley fire extinguishers,portable fire extinguisher,we have unbeatable competitiveness in terms of price and quality!

Hotel

Mall

Metro

The Parts of a Fire Extinguisher

While there are many different types of fire extinguishers – water, dry chemical, foam, clean agent, etc. – for the most part, they have the same or very similar parts with which to operate them.

In general, regardless of the class of extinguisher and the type of extinguishing agent they may contain, you can expect a fire extinguisher to have a:

Fire Extinguisher Accessories

Cylindrical Tank
Valve
Carry Handle
Operating Lever
Pull Pin
Tamper Seal
Pressure Gauge
Discharge Hose
Discharge Nozzle
Instruction Label
Monthly inspection tag
Annual inspection tag
Extinguishing Agent and Propellant
Each of these parts has a vital role to play, and some work together to perform one main function of the extinguisher.

The Role of Each Part
While there are many separate parts, each part contributes to one of three main roles: storing, expelling, or informing.

Cylindrical tank: the tank of any fire extinguisher is responsible for storing the extinguishing agent and the propellant under the correct amount of pressure. Typically made of steel, even small tanks can be surprisingly heavy.
The parts of the fire extinguisher responsible for the act of expelling the extinguishing agent together are known as the Valve Assembly. These parts include the:

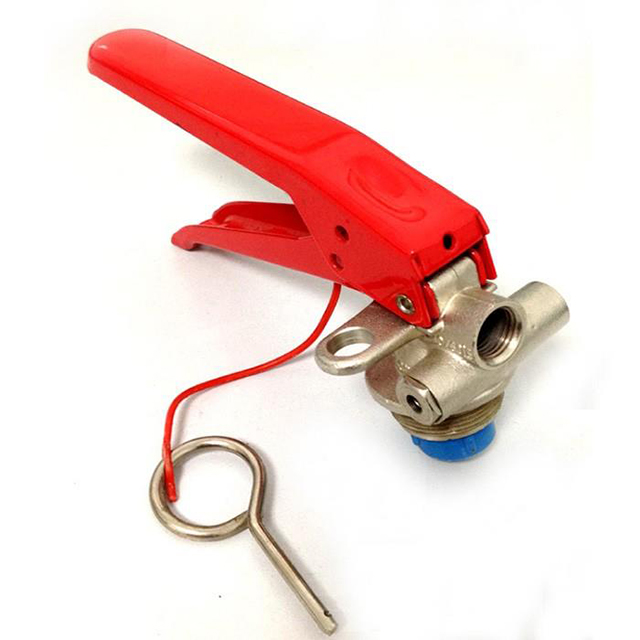

Valve: responsible for controlling the flow of the agent, the valve is the mechanism connecting the carry handle and the operating lever and around which they function.
Carry Handle: simply that, the handle allows for easy grasping, lifting, and carrying of the extinguisher.
Operating lever: the lever is the metal piece that can be pressed or squeezed to operate the extinguisher. However, the operating lever will not be able to be pressed/squeezed unless the pull pin has first been removed.
Pull pin: also known as the locking pin, this metal pin is inserted into the valve portion of the fire extinguisher and prevents accidental discharge (for instance, accidentally squeezing the operating lever down when you only meant to carry the extinguisher to a different location).
Tamper seal: a plastic tamper seal is placed to keep the pull pin from falling out accidentally.
Pressure gauge: the pressure gauge is a small, circular gauge attached to the outside of the valve assembly to show whether or not the fire extinguisher has proper pressure to expel the agent in the event of a fire. If the arrow of the gauge is in the green, it is properly charged. If it is to the left of the green, it is undercharged and will not have enough pressure to work properly. If the gauge needle is to the right of the green, it is overcharged and is a hazard at risk of exploding. C02 extinguishers do not have pressure gauges.
Discharge hose: the discharge hose is the hose that allows the extinguishing agent to travel from the tank to the base of the fire and enables the user to aim the flow of the agent.
Discharge nozzle: the nozzle is the hose’s conical end, out of which the extinguishing agent disperses.
In addition to these functioning elements of the fire extinguisher, there is also the informative parts, which include:

Instruction label: all properly operating fire extinguishers should have a legible instruction label on the extinguisher’s tank that provides instructions for proper use & which type of fire it is intended to be used on.
Monthly inspection tag: this tag allows the owner or person responsible for the monthly inspection to record the date of the monthly check as well as the initials of the individual who inspected it. This tag helps prove compliance with your local AHJ, as these monthly inspections are required.
Annual inspection tag: this tag is where your professional fire and security provider, such as Koorsen, will record the date and essential information behind the required annual maintenance inspection. This tag will be useful in proving compliance with local codes and in ensuring that the extinguisher is receiving the proper care that it needs to operate correctly when needed.

And of course, a fire extinguisher would not be such if it were not for the extinguishing agent – the chemical and/or substance stored inside the tank capable of suppressing or extinguishing a fire – and the propellant – the gas responsible for expelling the extinguishing agent out of the tank when activated.

Rules for Safe Use
When choosing to use a fire extinguisher to fight a fire, remember first to check that it is the correct class for the fire you are fighting (only a Class A rated extinguisher can be used when ordinary combustibles are involved, only a Class B rated extinguisher can be used when flammable liquids are involved, and only a Class C rated extinguisher can be used when electrical equipment is involved).

If you have the correct extinguisher, then just remember PASS:

Pull the pin
Aim the nozzle at the base of the fire from a safe distance
Squeeze the lever to discharge the agent
Sweep the hose from side to side
If you are in danger of being overwhelmed by the fire or trapped, it is best to evacuate the building and leave fighting the fire to emergency responders.
Aim the nozzle at the base of the fire from a safe distance
Squeeze the lever to discharge the agent
Sweep the hose from side to side
If you are in danger of being overwhelmed by the fire or trapped, it is best to evacuate the building and leave fighting the fire to emergency responders.
